AT-Bus 2008
 connects to: Zorro II

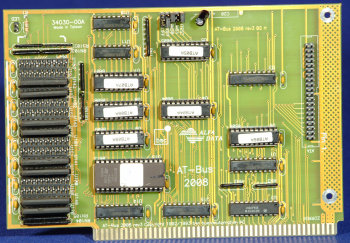

AT-Bus 2008

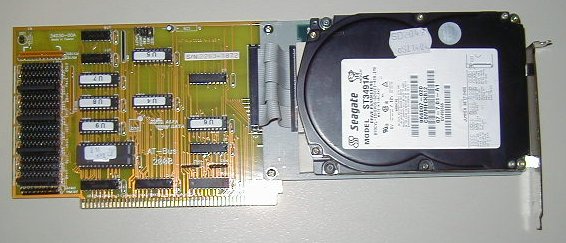

AT-Bus 2008 with mounting rails
Hi Res Version, AT-Bus 2008
- 2571 x 1782, 1,227K
Image of Box
- 589 x 262, 40K
Built by BSC and later on Alfa Data, this card is a half length Zorro II IDE card. It also allows the addition of up to 8MB of RAM in the form of ZIP chips. Memory must be added in groups of four and should be static column or page mode. Mounting rails can be attached to the card if you wish to mount a hard drive directly onto it.
Page contributors: Giaste, Jürgen Weiß, Michael Dittmar, RiWa & Friends
Updated: 1/6/2005 . Added: 12/22/2004
